COIL-ON-PLUG (COP) FORD MODULAR 2V HIGH OUTPUT
Availability:
Out-of-Stock
Description

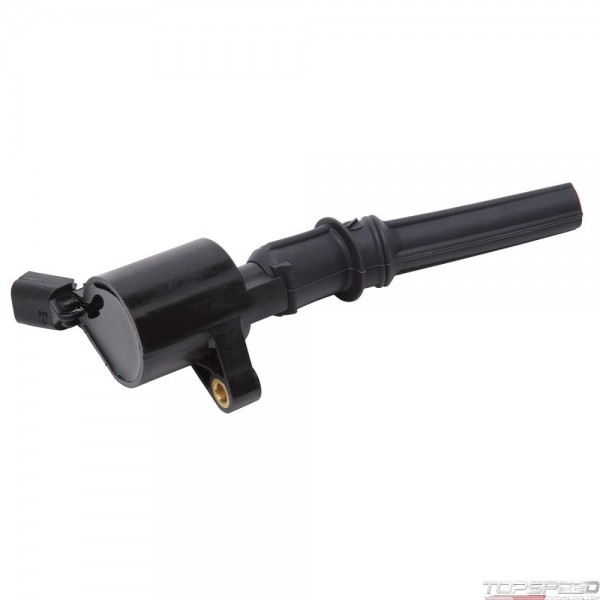

Edelbrock part PN: 22744 Max-Fire Coil-On-Plug ignition coil pack is for use with 1997-2014 Ford 4.6L, 5.4L and 6.8L engines with 2-valve cylinder heads. It's a direct bolt-on with OEM DIS electronic controls and aftermarket high performance ignition systems. Edelbrock Max-Fire Coil On Plug ignition coils are designed with higher resistance for increased energy output at higher rpm, when compared to an OEM coil. The coils are sealed with a high temperature epoxy for shock and vibration resistance?as well as excellent thermal conductivity. The spark plug spring contact is made from stainless steel, with a ferrite lug to reduce EMI/RFI noise, while the boots are molded from a high temperature silicone compound for superior heat resistance up to 550 degrees F. Order the direct bolt-on OEM coil pack best suited for your vehicle. Fits 2-valve engines only. Sold Individually.
Ford:Small-Block Modular 2V:281 (4.6L)
Ford:Small-Block Modular 2V:281 (4.6L)
COIL-ON-PLUG (COP) FORD MODULAR 2V HIGH OUTPUT - Part number: EDL-22744 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 22744 - COIL-ON-PLUG (COP) FORD MODULAR 2V HIGH OUTPUT direct-ignition-coil
Data sheet
- Voltage
- 12 2H
- Terminal Quantity
- 1
- Terminal Gender
- Female
- Terminal Type
- Blade Pin
- Connector Gender
- Female
- Mount Type
- Plug
- Wire Quantity
- 2
- Coil Type
- Ignition Coils
- Oil Filled
- No
- Height
- 6.5 IN
- Length
- 6.5 IN
- Width
- 2.25 IN
- Mounting Bracket Included
- No
- Coil Wire Included
- No
- Overall Height
- 6.5 IN
- Coil Shape
- Round
- Ignition Type
- Distributorless
- Mounting Position
- Cylinder Head
- Requires External Resistor
- No
Package dimensions
Width: 3.50 inch
Height: 2.12 inch
Depth: 7.81 inch
Weight: 0.55 lb
