- Out-of-Stock
R/P GM 10 8.5in. 4.56
Availability:
Out-of-Stock
Description

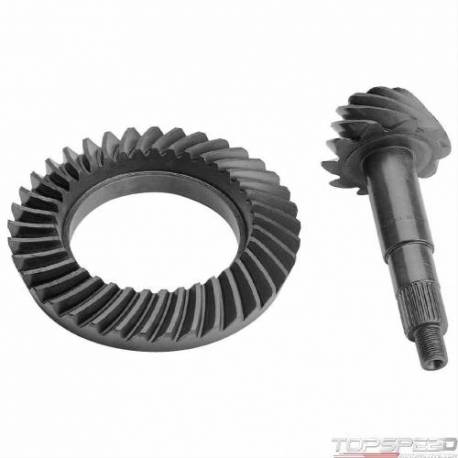

Gear, Ring and Pinion, 4.56:1 Ratio, GM, 8.5/8.6 in., Set
Summit Racing ring and pinion gear sets are ideally suited for track duty, street use, or off-road applications.These gear sets are CNC-cut from 8620 steel for outstanding durability, factory-lapped for a precise fit, and Rockwell-tested for hardness.
Summit Racing ring and pinion gear sets are ideally suited for track duty, street use, or off-road applications.These gear sets are CNC-cut from 8620 steel for outstanding durability, factory-lapped for a precise fit, and Rockwell-tested for hardness.
R/P GM 10 8.5in. 4.56 - Part number: SUM-741005 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 741005 - R/P GM 10 8.5in. 4.56 differential-ring-and-pinion
Data sheet
- Notes
- Pinion gear will not accept the factory anti-lock reluctor. Must use 2.73:1 or numerically higher ratio carrier.
- Quantity
- Sold as a set.
- Pinion Gear Teeth
- 9
- Differential Case Design Type
- GM 8.5/8.6 in.
- Carrier Bearings Included
- No
- Ring Gear Bolts
- 10
- Pinion Spline Count
- 30
- Ring Gear Rotation
- Standard
- Cover Gasket Included
- No
- Pinion Shims Included
- No
- Carrier Shims Included
- No
- Crush Sleeve Included
- No
- Pinion Seal Included
- No
- Pinion Nut Included
- No
- Ring Gear Bolts Included
- No
- Head Bearing Included
- No
- Tail Bearing Included
- No
- Axle Seals Included
- No
- Axle Bearings Included
- No
- Installation Kit Included
- No
- Ring and Pinion Ratio
- 4.56:1
- Ring Gear Teeth
- 41
- Ring Gear Diameter (in)
- 8.500 in.
- Pinion Shaft Diameter (in)
- 1.626 in.
- Differential Cover Included
- No
- Differential Oil Included
- No
- Friction Modifier Included
- No
- Installation DVD Included
- No
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
