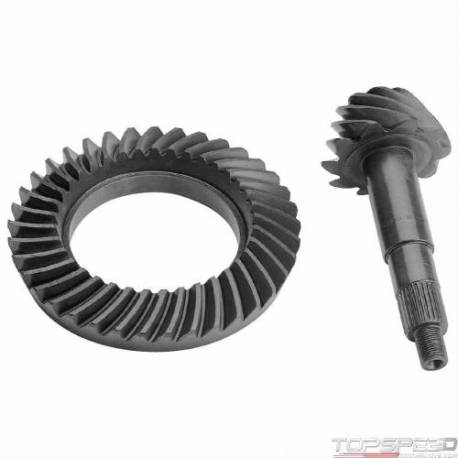

R/P FORD 9in. 3.50

Manufacturer: Summit Racing
Part number: 740901
MPN: 740901
UPC: 698231933923
Availability: Out-of-Stock
£270.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

Gear, Ring and Pinion, 3.50:1 Ratio, Ford, 9 in., Set

Summit Racing ring and pinion gear sets are ideally suited for track duty, street use, or off-road applications.These gear sets are CNC-cut from 8620 steel for outstanding durability, factory-lapped for a precise fit, and Rockwell-tested for hardness.

R/P FORD 9in. 3.50 - Part number: SUM-740901 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 740901 - R/P FORD 9in. 3.50 differential-ring-and-pinion

Data sheet

Quantity
Sold as a set.
Pinion Gear Teeth
10
Differential Case Design Type
Ford 9 in.
Carrier Bearings Included
No
Ring Gear Bolts
10
Pinion Spline Count
28
Ring Gear Rotation
Standard
Cover Gasket Included
No
Pinion Shims Included
No
Carrier Shims Included
No
Crush Sleeve Included
No
Pinion Seal Included
No
Pinion Nut Included
No
Ring Gear Bolts Included
No
Head Bearing Included
No
Tail Bearing Included
No
Axle Seals Included
No
Axle Bearings Included
No
Installation Kit Included
No
Ring and Pinion Ratio
3.5:1
Ring Gear Teeth
35
Ring Gear Diameter (in)
9.000 in.
Pinion Shaft Diameter (in)
1.313 in.
Differential Cover Included
No
Differential Oil Included
No
Friction Modifier Included
No
Installation DVD Included
No

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
