SHOCK DBLE ADJ FRT OR RR

Manufacturer: Summit Racing
Part number: G773601
MPN: G773601
UPC: 190861030381
Availability: Out-of-Stock
£411.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

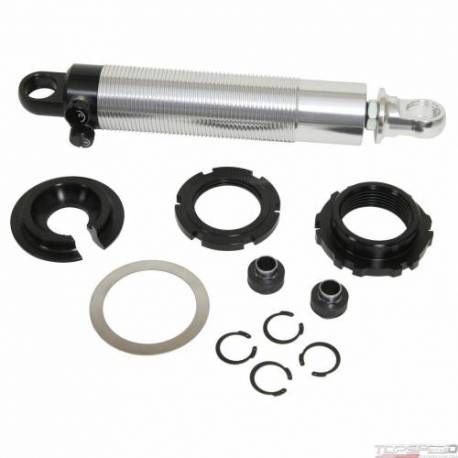

Coilover Shock, Double-adjustable, Aluminum, Clear Anodized, Bearing Mounts, 18.750 in. Extended Length, Each

Summit Racing coilover shocks provide true independent compression and rebound adjustment. Our double-adjustable twin-tube shocks provide such a wide range of adjustment that you're able to go from soft settings for a comfortable ride to extremely stiff for hardcore performance handling. They are crafted from clear anodized lightweight aluminum and fitted with precision-machined aluminum pistons and centerless-ground hard chrome plated piston rods. Set the right valving for your application and maximize performance with Summit Racing coilover shocks.

SHOCK DBLE ADJ FRT OR RR - Part number: SUM-G773601 - for American Cars - delivery to the UK and the EU

Manufacturer part number: G773601 - SHOCK DBLE ADJ FRT OR RR coilover-spring-and-shock-assembly

Data sheet

Hardware Included
Yes
Gas Charged
No
Bushing Material
Steel
Quantity
Sold individually.
Internal Design
Twin-tube
Adjustable Valving
Yes
Upper Mount
Bearing
Lower Mount
Bearing
Bushing Color
Natural
Body Diameter (in.)
2.000 in.
Collapsed Length (in.)
12.500 in.
Coilover Shock Type
Double-adjustable
Shock Body Material
Aluminum
Shock Body Finish
Clear anodized
Number of Valving Selections
324
Extended Length (in.)
18.750 in.
Coilover Springs Included
No
Recommended Spring Diameter (in.)
2.500 in.
Recommended Minimum Spring Length (in.)
14.000 in.
Recommended Maximum Spring Length (in.)
14.000 in.
Adjustable Mounting Bracket Included
No

Package dimensions

Width: 20.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 20.00 lb
