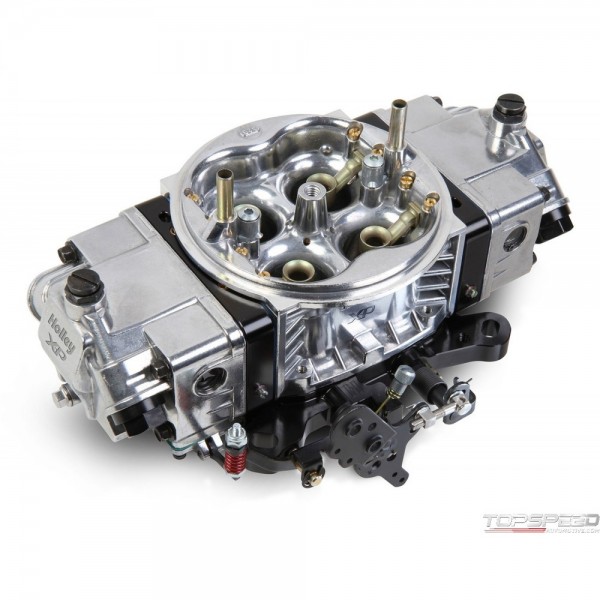

4150 ALUM ULTRA XP 850 CFM
Availability:
Qty: 14, Delivery time: 8 working days
Description
Xtreme Performance - Holley Ultra XP(TM) Circle Track Carburetors! Ultra XP carbs are 38% lighter than our original HP, have fuel capacity that is 20% greater and 30 other new features! They're available in our Hard Core Gray(TM) hard coat anodized finish with Black(TM) billet for improved corrosion protection & also available in natural tumble-polished aluminum with Black(TM) metering blocks and base plate. The Aluminum Ultra XP Cirlce Tracks are available in 650 & 750 CFM's. Holley Ultra XP carburetors are Specifically Calibrated for Circle Track & offer new features such as anti-siphon valve in the main body; high capacity HP bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, fully tunable billet metering blocks, billet base plate, wedge floats, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. Holley Ultra XP carburetors are the ultimate in square bore race carburetors!
4150 ALUM ULTRA XP 850 CFM - Part number: HOL-080804BKX - for American Cars - delivery to the UK and the EU
Manufacturer part number: 0-80804BKX - 4150 ALUM ULTRA XP 850 CFM carburetor
Data sheet
- Type
- Automotive
- Barrel
- 4
- Billet Color
- Shiny with Black Billet
- Booster Type
- Down Leg
- Carburetor Type
- 4150
- CFM
- 850
- Choke
- None
- Emission
- Without EGR
- Finish
- Shiny
- Flange
- Square Bore
- Fuel Inlet
- Dual
- Fuel Type
- Gasoline
- Material
- Aluminum
- Primary Main Jet
- 84
- Primary Power Valve
- 4.5
- Primary Pump Nozzle Size
- 32
- Secondary Type
- Mechanical
- Supercharged Application
- No
- Usage
- Street/Hi-Performance
- Throttle Bore (in.)
- 1.75
- Venturii Size (in.)
- 1.563
- Secondary Main Jet
- 84
- Secondary Pump Nozzle Size
- 32
Package dimensions
Width: 12.38 inch
Height: 9.13 inch
Depth: 14.25 inch
Weight: 9.20 lb
