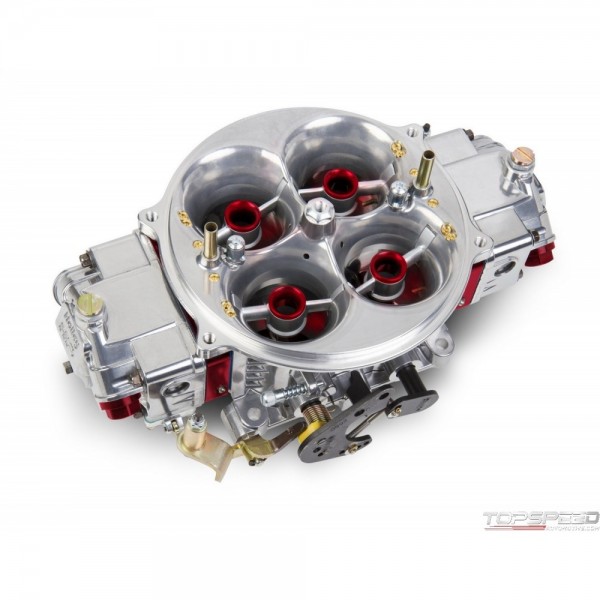

4500 1350 CFM 3 CIR 2X4-RED
Availability:
Out-of-Stock
Description
The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12 hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws Each calibration has been dyno and track tested to deliver proven performance!
4500 1350 CFM 3 CIR 2X4-RED - Part number: HOL-080923RD - for American Cars - delivery to the UK and the EU
Manufacturer part number: 0-80923RD - 4500 1350 CFM 3 CIR 2X4-RED carburetor
Data sheet
- Type
- Automotive
- Barrel
- 4
- Billet Color
- Shiny with Red Billet
- Carburetor Type
- 4500
- CFM
- 1350
- Choke
- None
- Emission
- Without EGR
- Finish
- Shiny
- Flange
- 4500
- Fuel Type
- Gasoline
- Material
- Aluminum
- Primary Main Jet
- 96
- Primary Pump Nozzle Size
- 45
- Secondary Type
- Mechanical
- Supercharged Application
- No
- Usage
- Racing
- Venturii Size (in.)
- 2.02
- Secondary Main Jet
- 96
- Secondary Pump Nozzle Size
- 45
- Idle Air Bleed Size
- 51
- Needle and Seat Size
- 120;120
- Intermediate Air Bleed
- 53
Package dimensions
Width: 12.38 inch
Height: 9.13 inch
Depth: 14.25 inch
Weight: 12.60 lb
