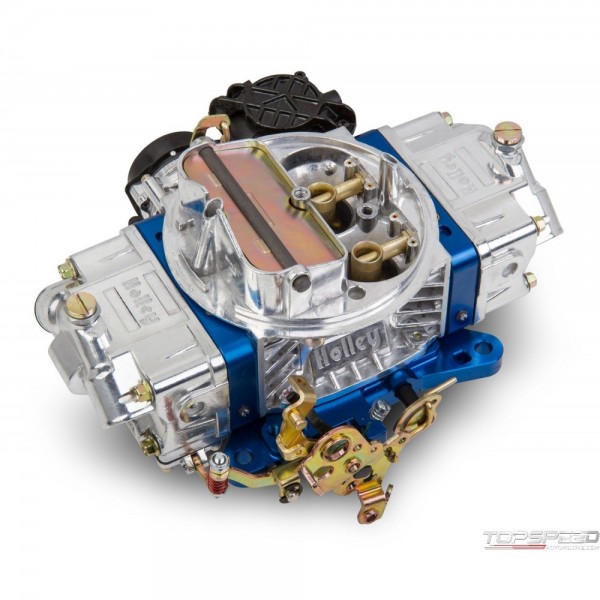

770 ULTRA STREET AVENGER W/BLUE BILLET

Manufacturer: HOLLEY
Part number: 086770BL
MPN: 0-86770BL
UPC: 090127664742
Availability:
£1,478.95
Tax included

Qty: 4, Delivery time: 8 working days

Description

The Ultra Street Avenger carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs less than a comparable zinc carburetor. The new Ultra Street Avenger carburetors have the same great features as their aluminum counterparts such as a tumble polished aluminum finish; quick change vacuum secondaries for easy tuning to optimize performance or fuel economy; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy startups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store. Ultra Street Avengers feature the same optimized street calibration as the zinc versions so you know they will run great on your vehicle. In addition, the Ultra Street Avenger now comes with anodized metering blocks and a base plate made from 6061-T6 billet aluminum and a built in, clear fuel level sight glass for easy, no mess fuel level adjustments. Don't trust your performance to just anyone, Holley is the only Modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the 60's.

770 ULTRA STREET AVENGER W/BLUE BILLET - Part number: HOL-086770BL - for American Cars - delivery to the UK and the EU

Manufacturer part number: 0-86770BL - 770 ULTRA STREET AVENGER W/BLUE BILLET carburetor

Data sheet

Type
Automotive
Barrel
4
Billet Color
Blue
Booster Type
Down Leg
Carburetor Type
4150
CFM
770
Choke
Electric
Emission
Without EGR
Finish
Shiny
Flange
Square Bore
Fuel Inlet
Dual
Fuel Type
Gasoline
Material
Aluminum
Primary Main Jet
72
Primary Power Valve
6.5
Primary Pump Nozzle Size
25
Secondary Type
Vacuum
Supercharged Application
No
Usage
Street/Hi-Performance
Vacuum Port Quantity
1 timed (spark); 2 full; 1 PCV
Secondary Main Jet
75

Package dimensions

Width: 12.50 inch
Height: 7.38 inch
Depth: 11.00 inch
Weight: 10.20 lb
