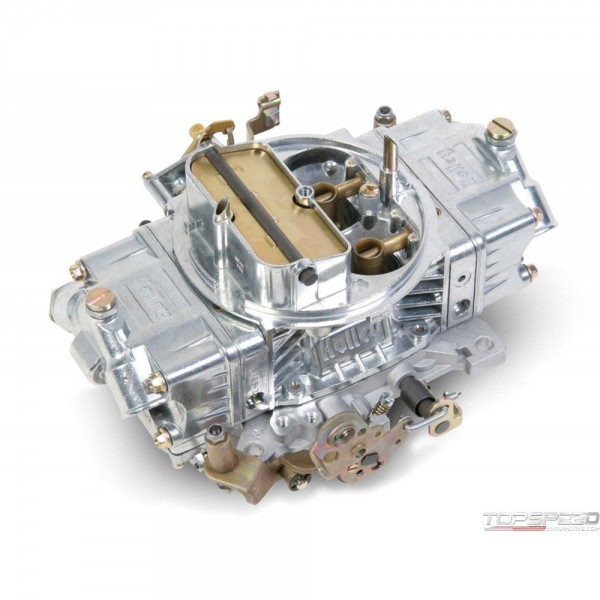

CARB-600CFM UNV DP 4150 POLISH

Manufacturer: HOLLEY
Part number: 080592S
MPN: 0-80592S
UPC: 090127529737
Availability:
£1,815.95
Tax included

Qty: 8, Delivery time: 8 working days

Description

These carburetors that are intended for use with superchargers, and have a unique capability that allows their power Valves to reference the intake Manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions. Without this external referencing, the power valve would be reading the Supercharger boost pressure, which has no bearing on the engine load.

CARB-600CFM UNV DP 4150 POLISH - Part number: HOL-080592S - for American Cars - delivery to the UK and the EU

Manufacturer part number: 0-80592S - CARB-600CFM UNV DP 4150 POLISH carburetor

Data sheet

Type
Automotive
Barrel
4
Booster Type
Straight
Carburetor Type
4150
CFM
600
Choke
Manual
Emission
Without EGR
Finish
Shiny
Flange
Square Bore
Fuel Inlet
Dual
Fuel Type
Gasoline
Material
Zinc
Primary Main Jet
68
Primary Power Valve
6.5
Secondary Type
Mechanical
Supercharged Application
Yes
Usage
Street/Strip
Secondary Main Jet
76
Secondary Power Valve
N/A

Package dimensions

Width: 12.50 inch
Height: 7.38 inch
Depth: 11.00 inch
Weight: 6.79 lb
