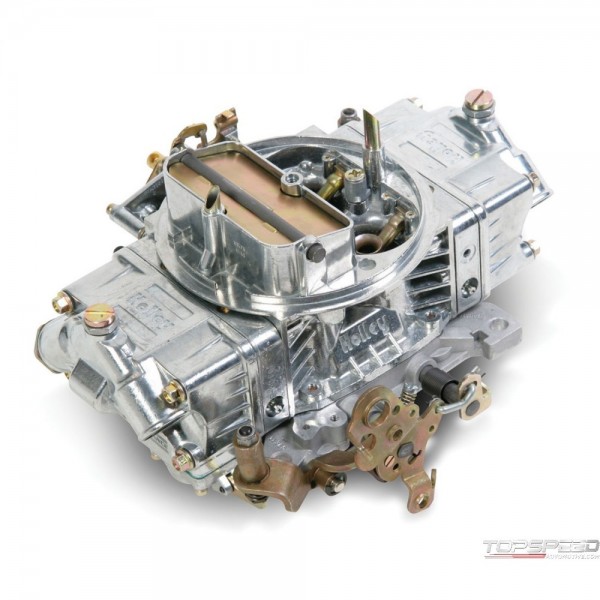

4150 750CFM DP SUPERC CARB POLISH

Manufacturer: HOLLEY
Part number: 080573S
MPN: 0-80573S
UPC: 090127467190
Availability:
£1,830.95
Tax included

Qty: 12, Delivery time: 8 working days

Description

These carburetors that are intended for use with superchargers, and have a unique capability that allows their power Valves to reference the intake Manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions. Without this external referencing, the power valve would be reading the Supercharger boost pressure, which has no bearing on the engine load.

4150 750CFM DP SUPERC CARB POLISH - Part number: HOL-080573S - for American Cars - delivery to the UK and the EU

Manufacturer part number: 0-80573S - 4150 750CFM DP SUPERC CARB POLISH carburetor

Data sheet

Type
Automotive
Barrel
4
Booster Type
Down Leg
Carburetor Type
4150
CFM
750
Choke
Manual
Emission
Without EGR
Finish
Shiny
Flange
Square Bore
Fuel Inlet
Dual
Fuel Type
Gasoline
Material
Zinc
Primary Main Jet
74
Primary Power Valve
10.5
Primary Pump Nozzle Size
28
Secondary Type
Mechanical
Supercharged Application
Yes
Usage
Street/Strip
Throttle Bore (in.)
1.688
Secondary Main Jet
84
Secondary Pump Nozzle Size
31

Package dimensions

Width: 11.50 inch
Height: 8.00 inch
Depth: 12.50 inch
Weight: 14.03 lb
