650CFM CARBURETOR EC MS
Availability:
Out-of-Stock
Description

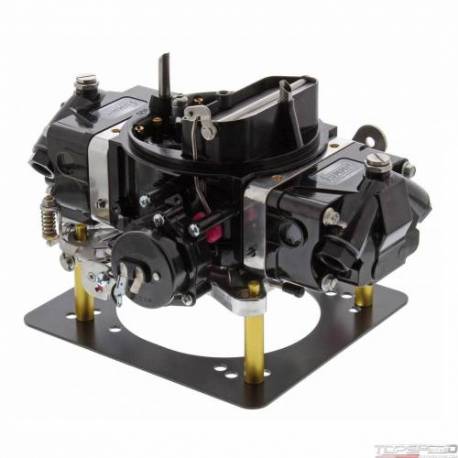

Carburetor, 650 cfm, Mechanical Secondary, Square Bore, Electric Choke, Electroplated, Each
Don't let the budget-friendly price fool you--these Summit Racing max performance carburetors are focused on the performance you want. These 4-barrel, square-bore carburetors are available from 500-850 cfm. Each carburetor comes equipped with dual fuel bowl inlets, Nitrophyl floats, Viton needle and seats, universal throttle linkage, and an electric choke. Summit Racing max performance carburetors are wrapped in a show-quality electroplate finish and have a high-quality stainless steel linkage and internal hardware. They are available with your choice of mechanical or vacuum secondaries and include non-stick gaskets to meet your engine's needs.
Don't let the budget-friendly price fool you--these Summit Racing max performance carburetors are focused on the performance you want. These 4-barrel, square-bore carburetors are available from 500-850 cfm. Each carburetor comes equipped with dual fuel bowl inlets, Nitrophyl floats, Viton needle and seats, universal throttle linkage, and an electric choke. Summit Racing max performance carburetors are wrapped in a show-quality electroplate finish and have a high-quality stainless steel linkage and internal hardware. They are available with your choice of mechanical or vacuum secondaries and include non-stick gaskets to meet your engine's needs.
650CFM CARBURETOR EC MS - Part number: SUM-CARB650ECMS - for American Cars - delivery to the UK and the EU
Manufacturer part number: CARB650-ECMS - 650CFM CARBURETOR EC MS carburetor
Data sheet
- Booster Type
- Down-leg
- CFM
- 650
- Choke
- Electric
- Fuel Inlet
- Dual
- Secondary Type
- Mechanical
- New Or Remanufactured
- New
- Notes
- 9.31 in. fuel line center to center length.
- Quantity
- Sold individually.
- Fuel
- Gasoline
- Number of Barrels
- 4
- Carburetor Flange
- Square bore
- Primary Jet Size
- 69
- Primary Power Valve (Hg)
- 6.5 Hg
- Primary Discharge Nozzle Size (in)
- 0.031 in.
- Secondary Jet Size
- 78
- Primary Outer Air Bleed Sizes Included
- 63
- Primary Inner Air Bleed Sizes Included
- 33
- Secondary Discharge Nozzle Size (in)
- 0.031 in.
- Secondary Outer Air Bleed Sizes Included
- 63
- Secondary Inner Air Bleed Sizes Included
- 33
- Carburetor Finish
- Black electroplated
- Ford Kickdown
- No
- Throttle Linkage Type
- Universal
- Carburetor Height (in)
- 5.125 in.
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
