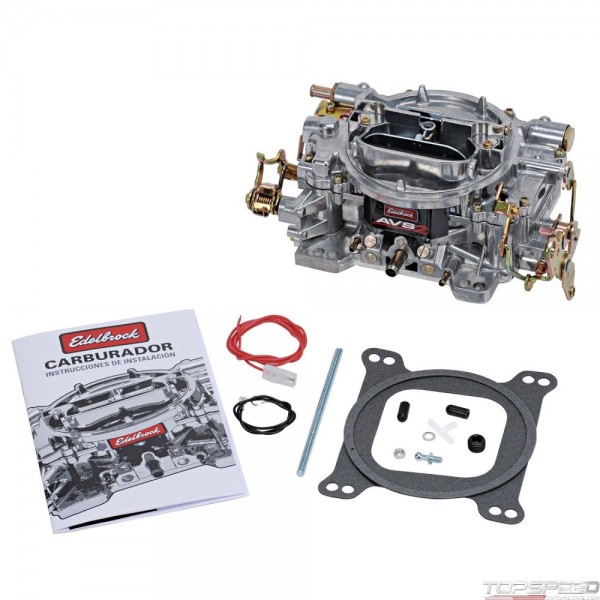

AVS2 650 CFM Carburetor with Manual Choke in Satin (non-EGR)

Manufacturer: EDELBROCK
Part number: 1905
MPN: 1905
UPC: 085347019052
Availability:
£567.55
Tax included

Qty: 40, Delivery time: 8 working days

Description

The Edelbrock AVS2 Series PN: 1905 is a satin-finished carburetor with manual choke that is designed and calibrated for optimum street performance in engines that require 650 CFM of air-fuel flow. The AVS2 is a perfect four-barrel replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 PN: 1905 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets, .070 x .037 metering rods, orange (5in. Hg) step-up spring. Use our Carburetor Stud Kits PN: 8008 or PN: 8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2, order part PN: 19053.

AVS2 650 CFM Carburetor with Manual Choke in Satin (non-EGR) - Part number: EDL-1905 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 1905 - AVS2 650 CFM Carburetor with Manual Choke in Satin (non-EGR) carburetor

Data sheet

Condition
New
Type
Street
Barrel
Four
Booster Type
Annular
CFM
650
Choke
Manual
Emission
Without EGR
Finish
Satin
Flange
Square Bore
Material
Aluminum
Usage
Street/Hi-Performance
Gasket Or Seal Included
Yes
Maximum Flow Rating
650 2L
Bore Diameter
Primary Bore 1.44; Secondary Bore 1.75 in
Series
AVS2
EGR Port
No
Barrel Quantity
4 Barrel
Body Height
3.25 in
Choke Type
Electric
Flange Shape
Square
Main Venturi Diameter
1.19 in
Metering Rod Size
.070 x .037 in
Primary Jet Diameter
0.101 in
Secondary Jet Diameter
0.098 in
Spring Force
5" Hg (Orange)

Package dimensions

Width: 7.00 inch
Height: 6.38 inch
Depth: 12.50 inch
Weight: 8.90 lb
