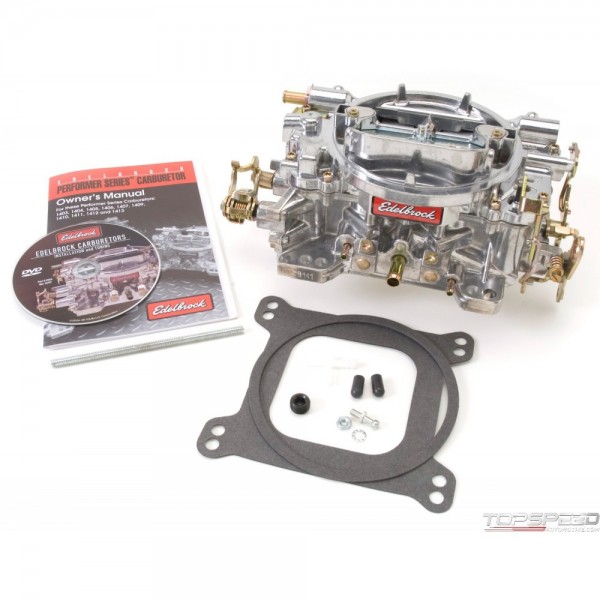

CARB PERF 750 CFM MANUAL SATIN

Manufacturer: EDELBROCK
Part number: 1407
MPN: 1407
UPC: 085347014071
Availability:
£614.95
Tax included

Qty: 3, Delivery time: 2 working days

Qty: 37, Delivery time: 8 working days

Description

The Edelbrock 1407 Performer Series 750 CFM manual choke carburetor is a precisely tuned, quality-built carburetor that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. Several characteristics make the 1407 Performer Series 750 CFM manual choke carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to 'hold a tune', so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for miles and miles of trouble-free operation.

CARB PERF 750 CFM MANUAL SATIN - Part number: EDL-1407 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 1407 - CARB PERF 750 CFM MANUAL SATIN carburetor

Data sheet

Condition
New
Type
Automotive
Barrel
Four
Booster Type
Annular
CFM
750
Choke
Manual
Emission
Without EGR
Finish
Satin
Flange
Square Bore
Material
Aluminum
Usage
Street/Hi-Performance
Gasket Or Seal Included
Yes
Maximum Flow Rating
750 2L
Bore Diameter
Primary Bore 1.69; Secondary Bore 1.69 in
Series
Performer
EGR Port
No
Barrel Quantity
4 Barrel
Body Height
3.25 in
Choke Type
Manual
Flange Shape
Square
Main Venturi Diameter
1.44 in
Metering Rod Size
.071 x .047 in
Primary Jet Diameter
0.113 in
Secondary Jet Diameter
0.107 in
Spring Force
5" Hg (Orange)

Package dimensions

Width: 7.38 inch
Height: 6.75 inch
Depth: 13.25 inch
Weight: 8.90 lb
