• Out-of-Stock

FUEL LINE CARTER/EDL 5/8-20

Manufacturer: Summit Racing
Part number: G15232
MPN: G1523-2
UPC: 190861020214
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

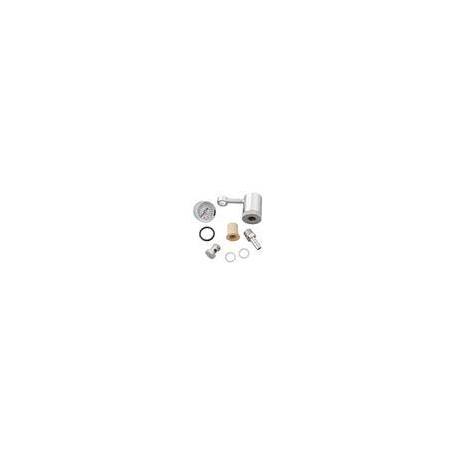

Fuel Line, Chrome, 3/8 in. NPT Inlet, Carter, Edelbrock, Kit

We put these complete fuel lines together a few years ago for single feed carbs. With these kits, you get a fuel pressure gauge, a chrome plated brass housing fuel filter, and an NPT pipe fitting for braided hose. The line mounts to your carb's fuel line fitting with a special collar bracket that allows fuel to flow easily from the line to the carb. Summit moved the gauge to an inline position with the filter for a more compact assembly that can be set at the angle needed for air cleaner clearance and easy access.

FUEL LINE CARTER/EDL 5/8-20 - Part number: SUM-G15232 - for American Cars - delivery to the UK and the EU

Manufacturer part number: G1523-2 - FUEL LINE CARTER/EDL 5/8-20 carburetor-fuel-inlet-fitting

Data sheet

Adjustable
No
Inlet Quantity
One
Outlet Quantity
One
Notes
Kit includes banjo bolt fitting.
Quantity
Sold as a kit.
Fitting Material
Steel
Fitting Finish
Chrome
Gauge Port
Yes
Fuel Filter Included
Yes
Inlet Attachment
Female threads
Outlet Attachment
Male threads
Fuel Pressure Gauge Included
Yes
Fuel Line Inlet Size
3/8 in. NPT
Fuel Line Outlet Size
5/8-20 in.
Fuel Line Type
Hard tube
Gauge Port Size
1/8 in. NPT
Fuel Line Material
Steel
Fuel Line Finish
Chrome

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
