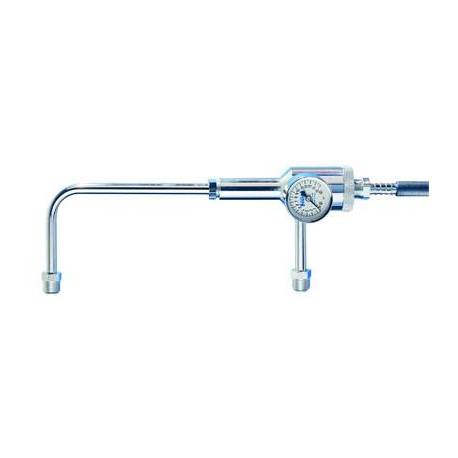

FUEL LINE W/GAUGE-ADJ M SERIES
Availability:
Out-of-Stock
Description
Fuel Line, Chrome, Steel, Adjustable, 3/8 in. NPT Inlet, Gauge Included, Kit
Summit adjustable fuel lines will solve the fuel delivery problems for anyone running dual feed Holley carburetors. First, our lines are adjustable--a very handy feature when you change from one carb to another, or to a tunnel ram with two inline, single inlet carbs. That saves you from having to buy a new fuel line or run ugly rubber hoses. We also put the fuel filter inline for easy inspection, and the fuel pressure gauge between the filter and the carb so you can tell when the filter is clogged. The fuel filter is as big as two small, spring-loaded filters in your carb put together. When those filters clog, their springs are forced back, allowing fuel and dirt to get around them. The combination of our line's big filter and pressure gauge will keep that from happening without you knowing about it. The filter has a brass housing to prevent galling and a 3/8 in. NPT pipe fitting to let you run braided hose right up to the filter. As a final touch, we gave the lines a durable, show-quality chrome finish.
Summit adjustable fuel lines will solve the fuel delivery problems for anyone running dual feed Holley carburetors. First, our lines are adjustable--a very handy feature when you change from one carb to another, or to a tunnel ram with two inline, single inlet carbs. That saves you from having to buy a new fuel line or run ugly rubber hoses. We also put the fuel filter inline for easy inspection, and the fuel pressure gauge between the filter and the carb so you can tell when the filter is clogged. The fuel filter is as big as two small, spring-loaded filters in your carb put together. When those filters clog, their springs are forced back, allowing fuel and dirt to get around them. The combination of our line's big filter and pressure gauge will keep that from happening without you knowing about it. The filter has a brass housing to prevent galling and a 3/8 in. NPT pipe fitting to let you run braided hose right up to the filter. As a final touch, we gave the lines a durable, show-quality chrome finish.
FUEL LINE W/GAUGE-ADJ M SERIES - Part number: SUM-G31208 - for American Cars - delivery to the UK and the EU
Manufacturer part number: G3120-8 - FUEL LINE W/GAUGE-ADJ M SERIES carburetor-fuel-inlet-fitting
Data sheet
- Adjustable
- Yes
- Inlet Quantity
- One
- Outlet Quantity
- Two
- Quantity
- Sold as a kit.
- Fitting Material
- Steel
- Fitting Finish
- Chrome
- Gauge Port
- Yes
- Fuel Filter Included
- Yes
- Inlet Attachment
- Hose barb
- Outlet Attachment
- Male threads
- Fuel Pressure Gauge Included
- Yes
- Fuel Line Inlet Size
- 3/8 in. NPT
- Fuel Line Outlet Size
- 5/8-18 in. inverted flare
- Fuel Line Type
- Hard tube
- Maximum Center to Center Distance (in)
- 8.500 in.
- Gauge Port Size
- 1/8 in. NPT
- Fuel Line Material
- Steel
- Fuel Line Finish
- Chrome
Package dimensions
Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
