SWITCH,BATTERY DISCONT. W/ALT PROTECT.

SWITCH,BATTERY DISCONNECT WITH ALT PROTECTION

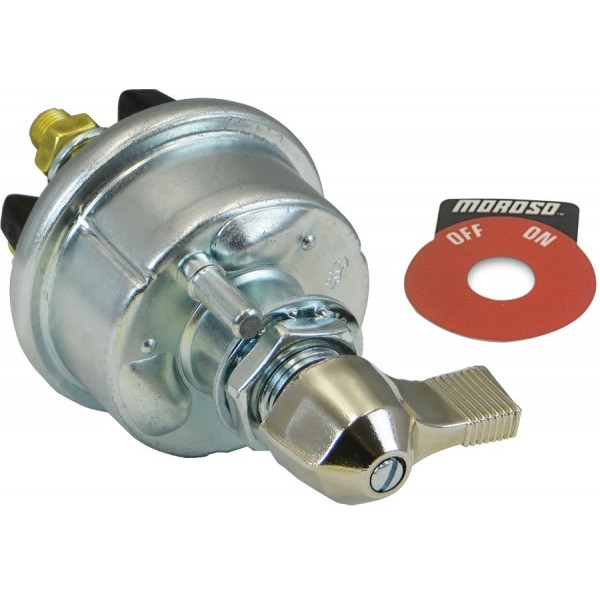

BATTERY & ALTERNATOR DISCONNECT SWITCH
-As race cars have gotten more complicated so has sanctioning bodies rules in making sure that a racecar's electrical power can be completely shut off.
-This 4-Pole switch makes installing a inMaster Disconnectin switch much simpler. A 4-Pole switch is used to disconnect both the battery and the alternator feed simultaneously without the need the need for relays.
-Can be mounted in the same locations as traditional On/Off switches with the added security of being able to interrupt the alternator circuit
-Four 3/8in -24 Terminals, rated at 125A continuous/ 750A intermittent, up to 36V DC max., Two Terminals marked inTerminal Ain for the battery circuit and Two Terminals marked inTerminal Bin for the alternator circuit
-Indexing pin aligns switch with mounting panel and prevents rotation: fits mounting panels up to 1/4in thick
-Includes switch position decal and switch location decal for the exterior of the car
-Use with Moroso Push/Pull Kit No.74105 for remote installations and Moroso Battery Cable Fitting End Kit with 3/8in opening No. 74170
