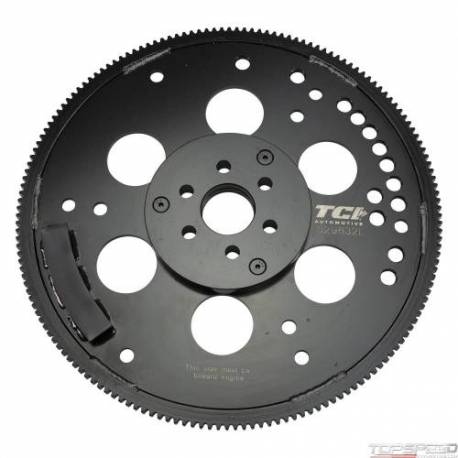

Ford Small Block to GM Transmission Adapter Flexplate w/ 50 Oz Balance
Availability:
Out-of-Stock
Description
With the TCI 50 oz. Ford to GM Adapter Flexplate, it is now possible to use a GM transmission on a n externally balanced Block Ford engine.
Ford Small Block to GM Transmission Adapter Flexplate w/ 50 Oz Balance - Part number: TCI-529632L - for American Cars - delivery to the UK and the EU
Manufacturer part number: 529632L - Ford Small Block to GM Transmission Adapter Flexplate w/ 50 Oz Balance automatic-transmission-flexplate
Data sheet
- Color
- Black
- Material
- Steel
- Inside Diameter
- 2.125IN
- Thickness
- N/AIN
- Outside Diameter
- N/AIN
- Grade Type
- Performance
- Mounting Hole Quantity
- 6
- Attachment Type
- Bolts
- Weight
- N/ALB
- Includes Hardware
- Yes
- Tooth Quantity
- 164
- SFI Approved
- No
- Balance Weight
- 50OZ
- Compatible Ford Engines
- 289, 302, 5.0, 351W
- Compatible GM Transmissions
- 4L80, 4L60, 700R4, 2004R, TH400, TH350, Powerglide
- Compatible w/ TCI 4X Transmissions
- Yes
- Compatible w/ TCI 6X Transmissions
- Yes
- Crankshaft Bolt Pattern
- SBF
- Describes Color
- Black
- E-Coated
- Yes
- Includes Pilot Adapter
- Yes, Built-In
- Mounting Hole Diameter (To Crankshaft)
- 15/32IN
- Mounting Hole Diameter (To to Torque Converter)
- 15/32IN
- Torque Converter Bolt Pattern
- 10.75 and 11.5IN
- Torque Spec (Flexplate to Converter)
- N/A
- Torque Spec (Flexplate to Engine)
- N/A
Package dimensions
Width: 16.75 inch
Height: 16.75 inch
Depth: 1.00 inch
Weight: 16.40 lb
