BELLHOUSING GM LS-1 TO 4SPD

Manufacturer: Summit Racing
Part number: 7001103
MPN: 7001103
UPC: 190861243514
Availability: Out-of-Stock
£1,107.95
Tax included

Description

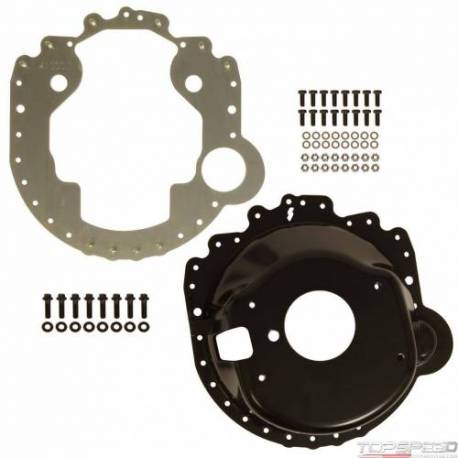

Bellhousing, Steel, Black, SFI 6.1, Chevy, LS to Muncie/T-10, Manual Transmission, Kit

Summit Racing manual transmission safety bellhousings are SFI 6.1 approved bellhousings designed and manufactured to fit most popular vehicles—whether for racing or used to swap engines/transmissions. The Summit bellhousings will give you a peace of mind that should a clutch or flywheel failure occur, the damage will be contained within the bellhousing. The Hydroformed process of these components makes for a superior one-piece design, thus, producing a consistent wall thickness and uniform strength throughout the structure to eliminate possible weak welded joints. These bellhousings use certified American made steel, stress relieved, then is shot peened to reach maximum yield strength.

BELLHOUSING GM LS-1 TO 4SPD - Part number: SUM-7001103 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7001103 - BELLHOUSING GM LS-1 TO 4SPD automatic-transmission-bell-housing

Data sheet

Notes
Can be used with a pivot ball or hydraulic throwout bearing.
Quantity
Sold as a kit.
SFI Rating
SFI 6.1
Clutch Fork Included
No
SFI-Approved
Yes
Block Plate Included
Yes
Bellhousing Depth (in.)
6.100 in.
Bellhousing Type
New
Adjustable Fork Pivot Recommended
No
Bellhousing Material
Steel
Bellhousing Finish
Black

Package dimensions

Width: 10.00 inch
Height: 10.00 inch
Depth: 10.00 inch
Weight: 10.00 lb
