Description

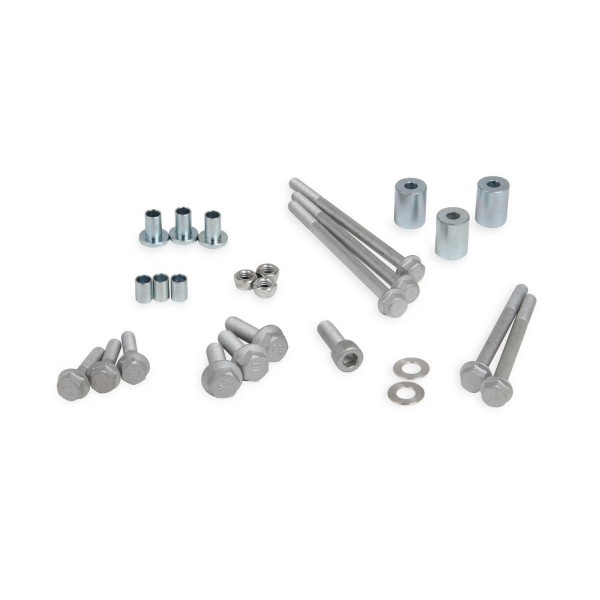

Kit contains the following replacement parts: Qty 1 - Spacer to Passenger's Side Head Bolt - M10 x 1.5 x 30 Qty 3 - Passenger's Side Bracket to Spacer Bolts - M8 x 1.25 x 35 Qty 2 - Tensioner Assy to Pass Side Bracket Bolt - M10 x 1.5 x 35 Qty 1 - Idler Pulley to Pass Side Bracket Bolt - M10 x 1.5 x 35 For SD5 Type AC Compressor - Qty 3 - A/C Compressor Bolts - M8 x 1.25 x 125 Qty 3 - A/C Comp Front Mounting Ear Sleeve - M10 to M8 Qty 3 - Brkt to Rear A/C Comp Ear Spacer - M8 Steel Qty 3 - Rear A/C Compressor Ear Bushing - M8 Flange Bushing Qty 3 - Rear A/C Compressor Locking Nuts - M8 x 1.25 For SD7 Type AC Compressor - Qty 2 - A/C Compressor Bolts - M8 x 1.25 x 95 Qty 2 - Brkt to Front A/C Comp Ears Spacer - M8 Thin
REPLACEMENT HARDWARE KIT FOR 20-134 - Part number: HOL-97173 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 97-173 - REPLACEMENT HARDWARE KIT FOR 20-134 accessory-drive-component-mount-set
Data sheet
- Engine Make/Size
- GM LS
- Finish
- Nickel
- Material
- Steel
Package dimensions
Width: 5.00 inch
Height: 2.00 inch
Depth: 5.00 inch
Weight: 1.00 lb
