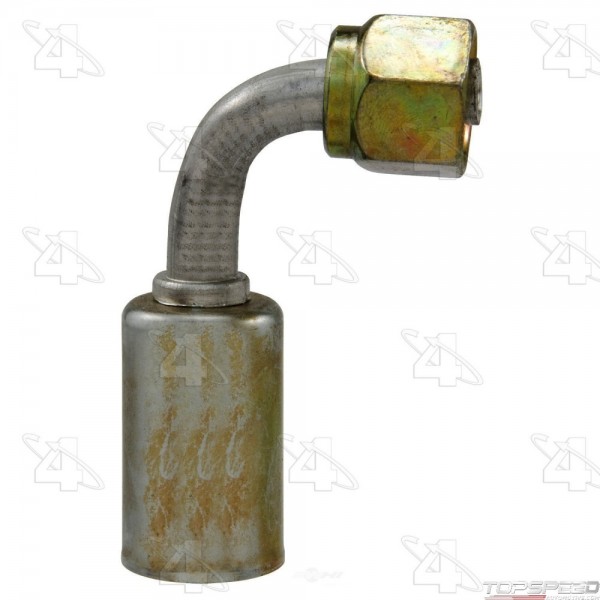

90 Degree Female Standard O-Ring Air Con Fitting with o Service Port

Manufacturer: FOUR SEASONS
Part number: 14206
MPN: 14206
UPC: 713602390744
Availability:
£28.55
Tax included

Qty: 17, Delivery time: 7 working days

Qty: 14, Delivery time: 8 working days

Description

Contains gaskets, o-rings, or seals to properly replace the product; Aluminum construction; Precision machined; Beadlock style connector

Universal

90 Degree Female Standard O-Ring Air Con Fitting with o Service Port - Part number: F/S-14206 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 14206 - 90 Degree Female Standard O-Ring Air Con Fitting with o Service Port ac-refrigerant-hose-fitting

Data sheet

Fitting Size
6
Fitting Type
Female O-Ring
Hose Size
6
Description
AC Fittings
Fitting Angle
90°
Fitting Thread Size
5/8" - 18
Gasket / Seals?
Included
Hose Connection Type
Beadlock
Hose I.D. Fraction
5/16
Hose I.D. IN
0.3125
Hose I.D. MM
7.9375
Drop Length IN
1.125
Drop Length MM
28.448

Package dimensions

Width: 1.50 inch
Height: 1.50 inch
Depth: 3.50 inch
Weight: 0.13 lb
