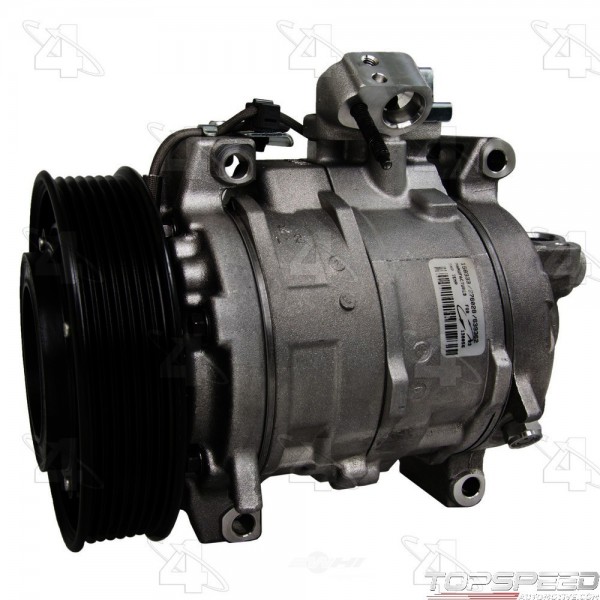

New Nippondenso 10SR15C Compressor with Clutch

Manufacturer: FOUR SEASONS
Part number: 158333
MPN: 158333
UPC: 713602582316
Availability: Last items in stock
£388.96
Tax included

Qty: 2, Delivery time: 2 working days

Qty: 3, Delivery time: 7 working days

Description

All compressors go through sophisticated testing and leak test processes; Includes specific electrical connector to eliminate splicing; For ease of installation this compressor includes all gaskets, o-rings or sealing washers needed to repair your car; Validated for fit, form, and function to OE standards

Fits North American Versions ONLY
Honda Accord (12-08 2.4L L4); Crosstour (15-12 2.4L L4)

HONDA OE Part Number: 38810-R40-A01

Clutch Included
Yes
Coil Clock Position
Wire Lead
Compatible Refrigerant Oil Type
PAG 46
Discharge Port Type
O-Ring
Mount Distance MM
35.560 mm
Mounting Type
Tangent Mount
O-Ring A Number/Desc [24681] / Green O-Ring
O-Ring B Number/Desc [24661] / Green O-Ring
Printed Foot Note
May Require use of OE Manifold
Pulley Diameter MM
133.350 mm
Pulley Lip Diameter
5.250 in
Pulley Ridge Diameter
5.250 in
Suction Port Type
O-Ring
Type
Nippondenso
Clutch Maximum Diameter
5.250 in
Coil Voltage
12 2H
Compressor Type
10SR15C
Distance From Clutch To Mounting Flange
1.40625 in
Mounting Hardware?
Not Included
New or Reman
New
O-Ring A Quantity
1
O-Ring B Quantity
1
Pulley Belt Type
Serpentine
Pulley Groove Quantity
7
Pulley Outside Diameter
5.25
Refrigerant Type
R134a
Terminal Type
Pin

New Nippondenso 10SR15C Compressor with Clutch - Part number: F/S-158333 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 158333 - New Nippondenso 10SR15C Compressor with Clutch ac-compressor

Package dimensions

Width: 11.37 inch
Height: 7.00 inch
Depth: 7.75 inch
Weight: 15.00 lb
